Connection type:

BMT

Tool holder type:

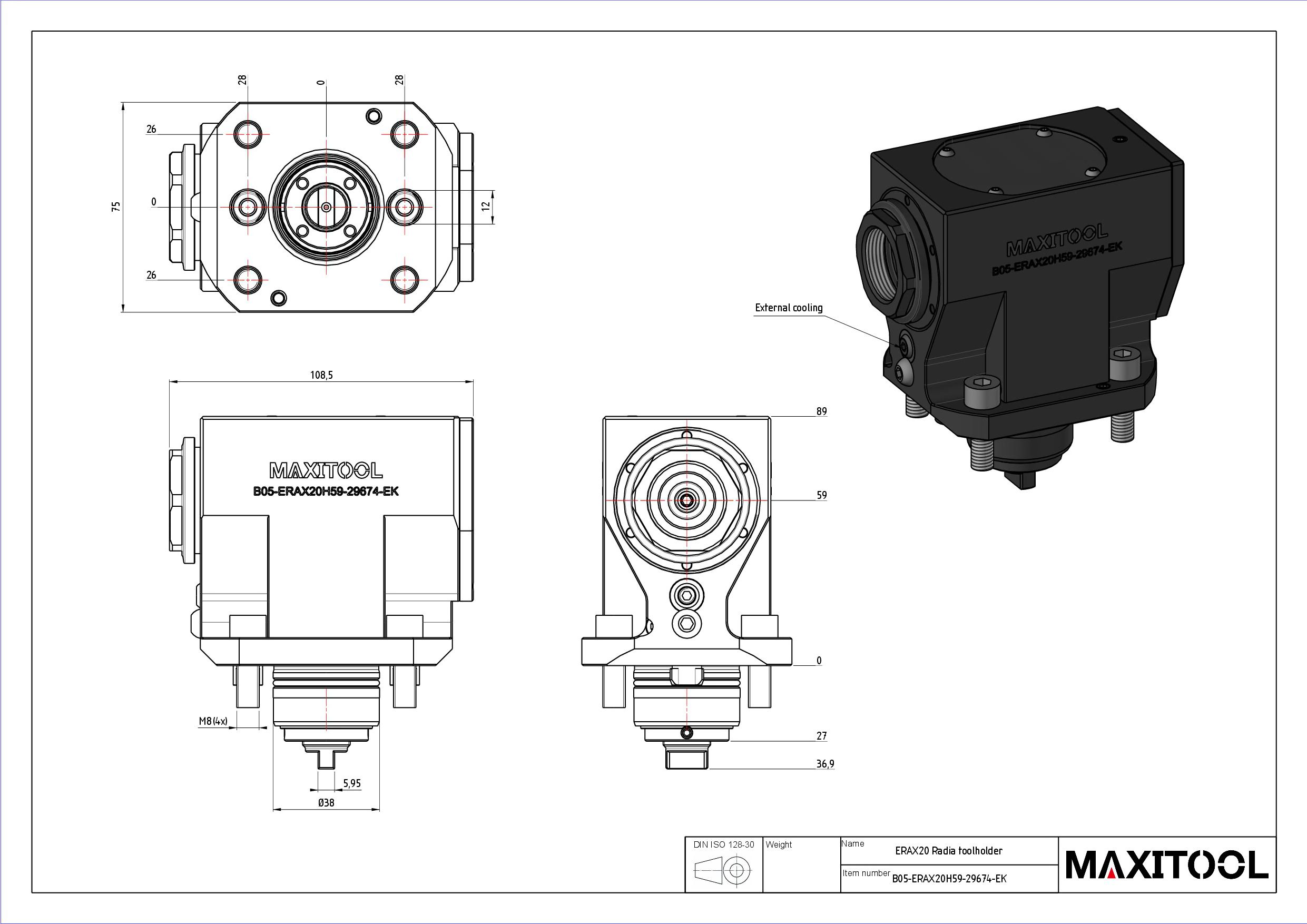

radial drilling and milling head

Tool connection:

ER20

Tool height:

H59

Machine connection code:

29674 (BMT38 L37)

Cooling type:

external cooling

Gear ratio:

i=1:1

Rotation max:

6000 1/min

Torque max:

20 Nm

Miyano:

ANX 42 SYY

BNA 34, 42 S/C/DHY/MSY/GTY
